Ultra-Containment Berm Ultimate Model Unique, living hinge design allows hands free drive in and drive out, no need to manually raise or lower the end walls.

Ultra-Containment Berm Ultimate Model is the perfect combination of convenience and economy. When it comes to capturing leaks and spills that often occur during equipment maintenance or the transportation of containment drums. This spill containment berm features 12 inch walls that supported with a unique living hinge, so that gives them the ability to bend under equipment and snap back into place.

Ultra-Containment Berm Ultimate Product Highlights

  • No need to manually raise or lower the end walls, because of its has living hinge.
  • Easy to install and transport. So its very help full.

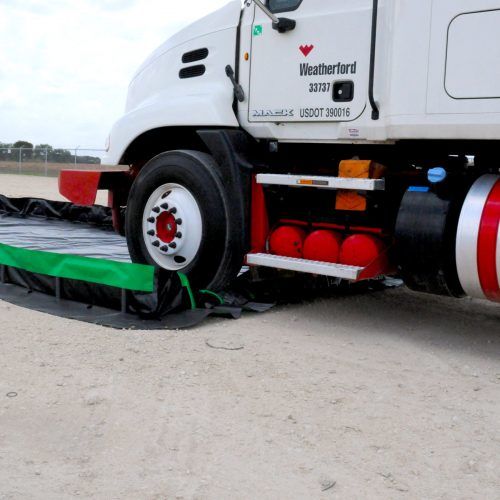

  • Once a vehicle has entered or exited, the walls automatically spring back to their vertical position, because of its living hinge.
  • Both long side walls held up right by PVC side wall assemblies. Simply swivel the feet to lower the side walls for storage or transport to another location.
  • Convenient and economical spill containment for drums, IBCs, vehicles, equipment, frac tanks, and other large containers.
  • Available in Co polymer 2000 and other rugged materials.
  • Berms are available in diffrent sizes as below chart.



Helps Comply with These Rules & Regulations

  • EPA Container Storage Regulation 40 CFR 264.175
  • Spill Prevention, Control and Countermeasure Act (SPCC)

Brand: Ultrtech

Origin: USA

Item Code & sizes are available in below table.

Downloads
Additional Info

Ultra-Containment Berms – Ultimate Model – Copolymer-2000

Part # Dimensions ft. (m) Containment Capacity gal. (L) Weight lbs. (kg)
8500 4 x 6 x 1 (1.2 x 1.8 x .3) 179 (677) 72 (32.7)
8501 10 x 10 (3.0 x 3.0) 748 (2831) 176.0 (79.8)
8502 12 x 26 (3.7 x 7.9) 2,333 (8,831) 189.0 (85.7)
8503 12 x 30 (3.7 x 9.1) 2,692 (10,190) 256.0 (116.1)
8509 12 x 36 x 1 (3.7 x 11 x .3) 3,231 (12,230) 283.0 (128.4)
8505 60 x 12 x 1 (18.3 x 3.7 x .3) 5385 (20384.4) 297.0 (134.5)
8508 14 x 54 x 1 (4.3 x 16.5 x .3) 5,655 (21,406) 368 (166.9)
8510 14 x 56 x 1 (4.3 x 17.1 x .3) 5,864 (22,197) 408.0 (185.1)
8506 50 x 15 x 1 (15.2 x 4.6 x .3) 5610 (21236.2) 326 (147.9)
8507 66 x 15 x 1 (20.1 x 4.6 x .3) 7405 (28031) 405 (183.7)
