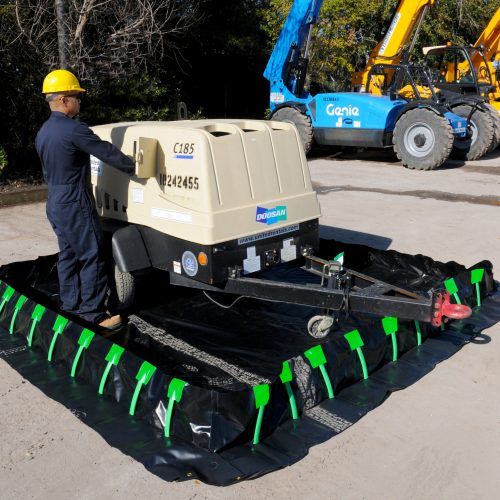

Ultra-Containment Berm Stake Wall Model Portable secondary containment berm for drums, frac tanks, equipment and vehicles.

The Ultra Containment Berm Stake Wall Model is a portable berm that helps capture leaks, drips. And spills to prevent them from contaminating and polluting the environment.

Beacause of stake wall model’s design features, flexible polyurethane stakes that allow the side walls to spring into place automatically even after being bent in either direction. This makes it perfect for spill sites or containment areas because it allows drums and trucks to roll over the walls with out breaking their up right structure.

Ultra-Containment Berm Stake Wall Model Product Highlights

  • Easily folds for transport and easy to install, So its very help full.
  • No set up required un fold and the side walls automatically spring into their vertical position, because of its living hinge.
  • Custom sizes are available.
  • Available in Co polymer 2000 and other rugged materials.
  • Vertical side wall supports located every 12″. Each Support features a built in “living hinge” at its base, so that allows side walls to collapse in either direction. Collapsed side walls spring back automatically.

Helps Comply with These Rules & Regulations

  • EPA Container Storage Regulation 40 CFR 264.175
  • Spill Prevention, Control and Countermeasure Act (SPCC)

Brand: Ultratech

Origin: USA

Item Code & sizes are available in below table.

Downloads
Additional Info

Ultra-Containment Berm – Stake Wall Models

Part # Dimensions ft. (m) Containment Capacity gal. (L) Weight lbs. (kg)
8208 6 x 4 x 1 (1.8 x 1.2 x .3) 179 (677.6) 37 (16.8)
8209 6 x 6 x 1 (1.8 x 1.8 x .3) 269 (1018.3) 46 (20.9)
8210 10 x 10 x 1 (3 x 3 x .3) 748 (2831.5) 87 (39.5)
8220 20 x 10 x 1 (6.1 x 3 x .3) 1496 (5663) 150 (68)
8221 30 x 10 x 1 (9.1 x 3 x .3) 2244 (8494.5) 208 (94.3)
8222 40 x 10 x 1 (12.2 x 3 x .3) 2992 (11326) 266 (120.7)
8223 50 x 10 x 1 (15.2 x 3 x .3) 3740 (14157.4) 325 (147.4)
8224 12 x 12 x 1 (3.7 x 3.7 x .3) 1077 (4076.9) 113 (51.3)
8225 20 x 12 x 1 (6.1 x 3.7 x .3) 1795 (6794.8) 162 (73.5)
8226 30 x 12 x 1 (9.1 x 3.7 x .3) 2692 (10190.3) 223 (101.2)
8227 40 x 12 x 1 (12.2 x 3.7 x .3) 3590 (13589.6) 284 (128.8)
8228 50 x 12 x 1 (15.2 x 3.7 x .3) 4488 (16988.9) 345 (156.5)
8229 60 x 12 x 1 (18.3 x 3.7 x .3) 5385 (20384.4) 406 (184.2)
8230 15 x 15 x 1 (4.6 x 4.6 x .3) 1683 (6370.8) 151 (68.5)
8231 20 x 15 x 1 (6.1 x 4.6 x .3) 2244 (8494.5) 184 (83.5)
8232 30 x 15 x 1 (9.1 x 4.6 x .3) 3366 (12741.7) 250 (113.4)
8233 40 x 15 x 1 (12.2 x 4.6 x .3) 4488 (16988.9) 317 (143.8)
8211 50 x 15 x 1 (15.2 x 4.6 x .3) 5610 (21236.2) 363 (164.7)
8212 66 x 15 x 1 (20.1 x 4.6 x .3) 7405 (28031) 464 (210.5)
