IR3 Flame Detector | RFD-6X
IR3 Flame Detector | RFD-6X
Flame DetectorIR3 Flame Detector

IR3 Flame Detector | RFD-6X

Enquire This Product

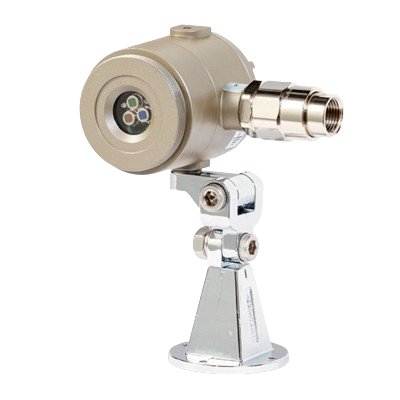

Flame Detector RFD-6X is a Triple IR (IR3) Flame Detector is identify fire by analyzing the IR wave lengths of a flame.

  • Maximum 50 meters of detection range with a 90 degree cone of vision.
  • Permits operation at Hazardous areas.
  • User selectable output options among Relays.
Highlights
  • Detector have multispectrum IR sensors.
  • Enhanced False Alarm Immunity against sunlight and artificial false alarm sources.
  • Explosion Proof and Dust Ignition proof also.
  • Flame Detector RFD-6X is suitable for hazardous areas such as Oil and Gas stations also Petrochemical plants.
Specification
[ Specification ]

  • Type : Triple Infrared
  • Nominal sensing range : 50 m
  • Sensing angle : 90°, Cone type
  • Operating temp. : -40°C ~ +75°C
  • Humidity : 0 ~ 95 %
  • Explosion proof :
  •   – Ex d IIC T6 / T5 (KCs)
  •   – Ex tD A21 T85℃ / T95℃ (KCs)
  •   – IP66 / 67 (KCs)
  • Out put signal
  •    – Relay
 [ Structure ]

  • Material : Aluminum
  • Surface : Anodizing Process
  • Weight : 0.6 ㎏
  • External : 89 mm (W) x 89 mm (D) x 82 mm (H), Connector 1/2″ PF

[ Electrical ]

  • Power Consumption  : minimum  2.0 W /
  •                             maximum  3.6 W @ 30 VDC
  • Operating Voltage : Typical 24 VDC (17~32 VDC)
Item Code: RFD-6X
