Gas Cylinder Storage Cabinet

DESCRIPTION

Product description: Gas cylinder storage cabinets are main products for storage of gas cylinders in laboratory. Its function is for protecting the inside gas cylinder from the outside fire, and the surroundings from the fire.

Product Features

  • Body: Apply cold rolled steel plates, treated with acid pickling and phosphating passivation, surface is coated by electrostatic spraying of epoxy powder. So its resist  the acid, alkali and rusty.
  • Door: Removable linkage, with perspective window in the door.
  • PASS hole: PASS hole on the both side of body, to ensure the fresh air flow inside.
  • Fixed belt: With fixed belt to keep the gas cylinder stabile.
  • Fold down ramp: Adjustable fold down ramp on the bottom, so easy to load or unload the gas cylinder bottle in and out.(optional)

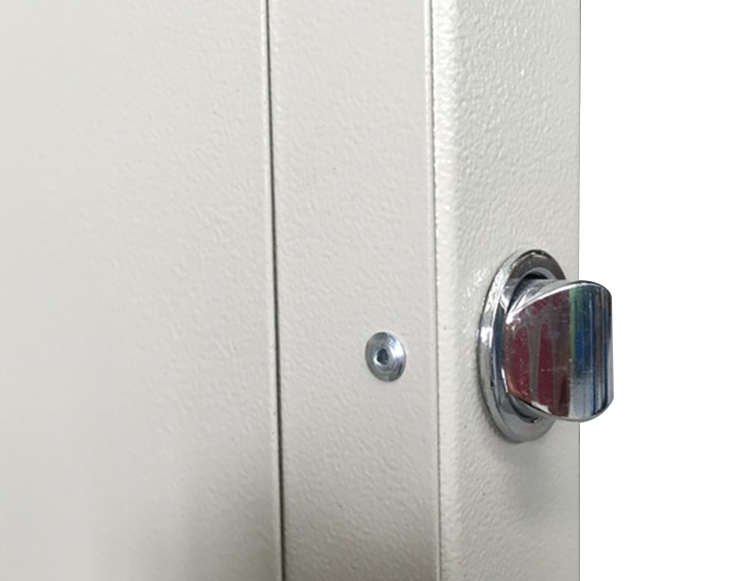

  • Handle: Flush mounted high strength handle.

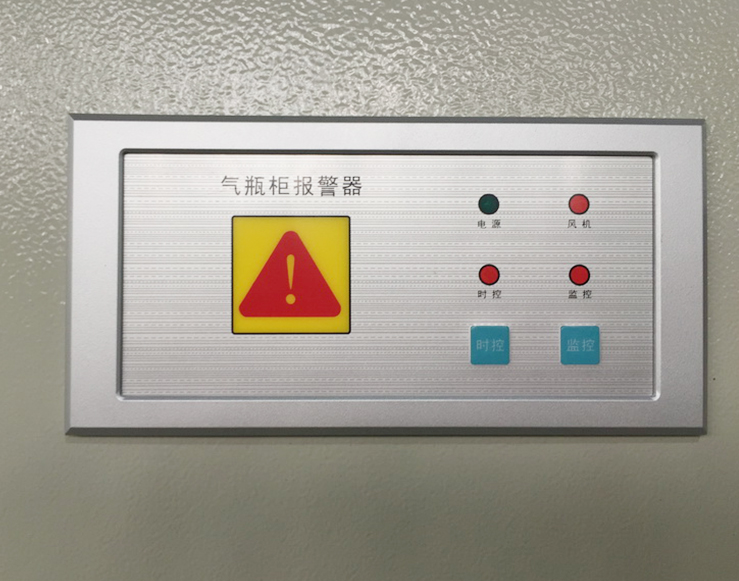

  • Alarm: Alarm device can identify: combustible gas (such as methane, acetylene, gas, hydrogen, etc.),using special combustible gas detectors, air diffusion sampling, when the cut off point to a concentrationof chip set, will automatically alert.

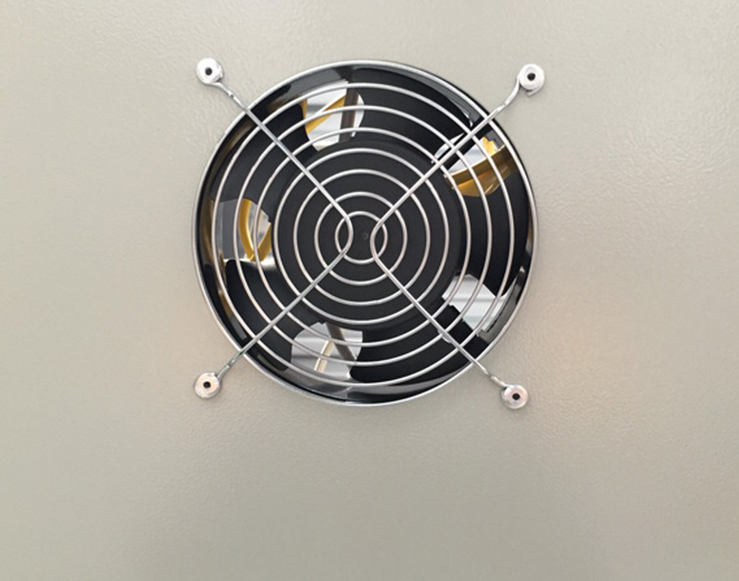

  • Automatic exhaust system: Once the sensor detects the gas leakage and alerts, the exhaust fan on the top of cabinet will automatically works, and pump the gas outside the cabinet through the pipe, to ensure the safety of workers in work area.
  • Special purpose alarm device is available according to the storage requirement, because of more safety and reliability.

Specification

  • All steel gas cylinder cabinet: H*W*D mm
  • 1800*600*450, 1800*900*45, 1800*1200*450, 1800*1500*450
  • Explosion proof gas cylinder: H*W*D mm
  • 1900*600*450, 1900*900*450, 1900*1200*450, 1900*1500*450

Brand: Zoyet

Origin: China
